A Class defines the structural framework of a Dataset. It determines how data is organized and stored in CWBC.



Multiple Classes may exist within a single CWBC database. Typically, separate Classes are maintained for different planning areas, such as:

• Operating
• Capital



Each Class is made up of two core components:

1. Class Columns – configurable columns that define what type of data is captured (e.g., monthly budget amounts).
2. COA Class Keys – rows representing account items from the Chart of Accounts (such as General Ledger account numbers).



Together, the Class Columns and COA Class Keys form a structured grid. This grid acts as a template that determines how data is stored in CWBC.



For example, in a simple Operating Class:

• Columns may represent periods in a year (e.g. January, February, March... December).
• Rows represent individual Account Numbers (COA Class Keys).



The cell intersection of each row and column stores a single data value, usually representing a budget or actual transaction or balance amount.



Important Class Design Principles

• Classes store data only.
• Classes do not contain calculated rows or calculated columns.
• Any calculations (totals, variances, derived metrics, etc.) are defined in Views, not within the Class itself.
• Calculated fields are dynamic and do not represent stored (persisted) data.



A Class defines the database data structure only — it does not define Years or Datasets.

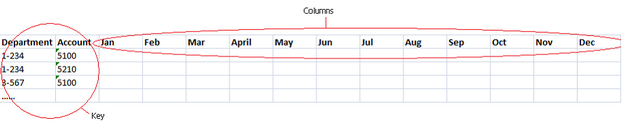

An example of a simple Operating Class, where monthly budget data will be stored in columns (Class Columns), against rows defined by Account Numbers (COA Class Keys), is illustrated in the table below.
